Conduit fittings & protection
90° Flanged Conduit Elbow
A PA66 nylon elbow for wire and cable protection conduit, with a flanged connection and five mounting holes.
Manufacturing focus
Mould development and injection moulding from customer drawings, including the angled conduit body, connection ends and five-hole mounting flange.
OUR WORK ON THIS COMPONENT
- Material
- PA66 nylon
- Design input
- Customer product drawings
- Our work
- Mould development & injection moulding

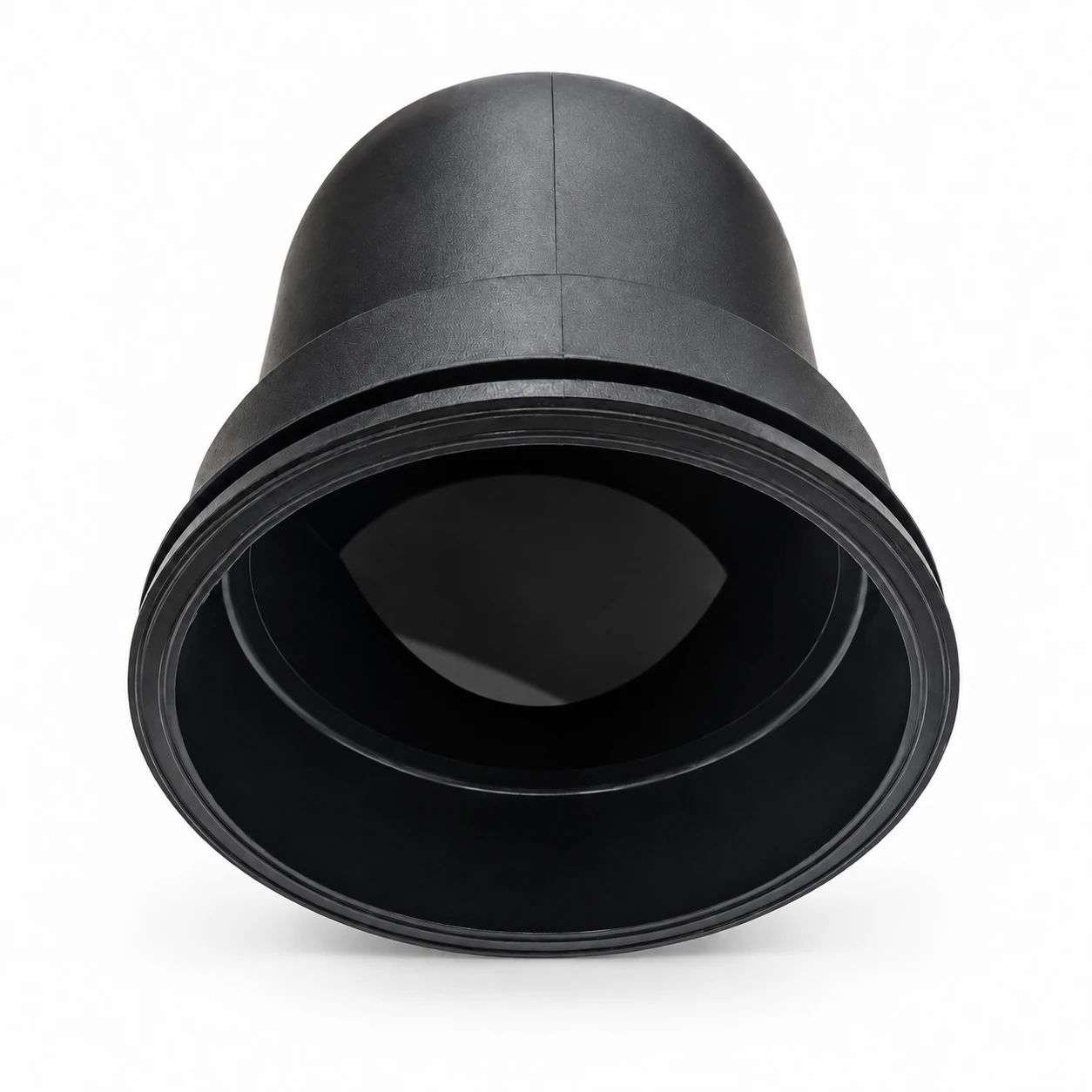

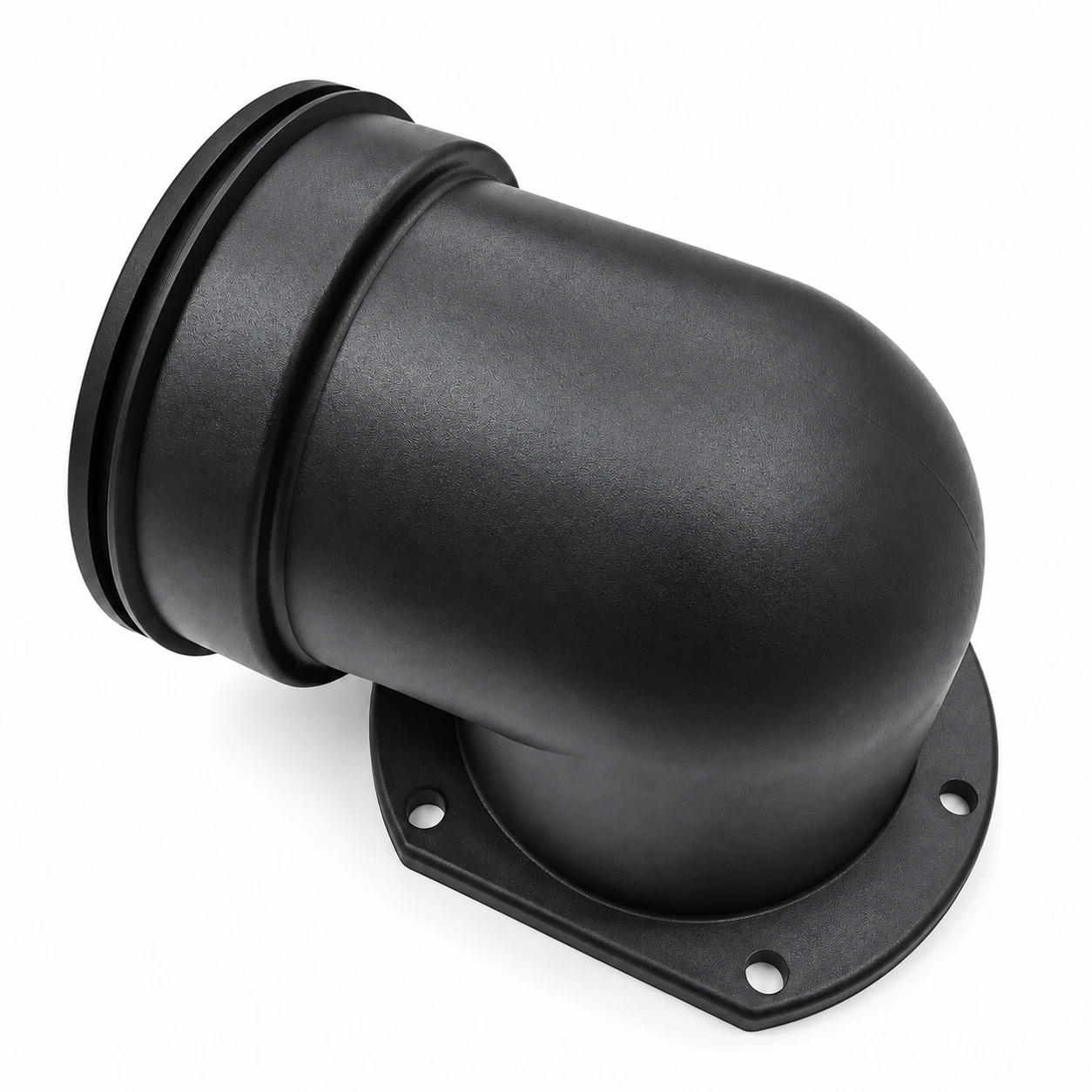

COMPONENT VIEWS
A closer look
Factory-supplied photographs, retouched for presentation.
OEM PROJECT SUPPORT
From drawings to production
Trial samples are submitted for customer approval before mass production.
